As a leading steel silo engineering system and EPC general contractor specializing in bulk material storage and transportation, Sprint Drives offers comprehensive solutions beyond steel silo design and construction. We also provide clients with state-of-the-art conveying systems and auxiliary equipment to ensure optimal performance and efficiency within their European operations.
The conveying system is a critical component of the steel silo storage and transportation system. It efficiently transports powdery and granular materials to designated locations in various directions (horizontal, vertical, or inclined). The conveying system boasts a simple structure and easy operation, enabling flexible transportation needs. Additionally, it can perform various operations simultaneously, such as heating, cooling, drying, air flow classification, or chemical processes, during the transportation process. Our comprehensive range of conveying equipment includes elevators, belt conveyors, pipe belt conveyors, scraper conveyors, pneumatic conveying systems, and more. If you are interested in exploring the conveying systems and equipment that support our steel silos or require further details, please contact our European team.
1. Bucket Elevator

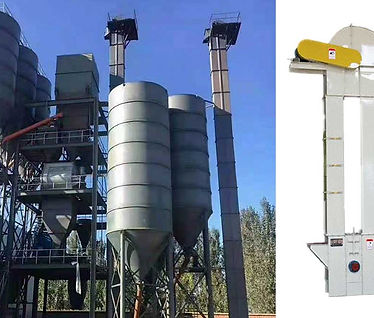

The bucket elevator is a versatile conveying equipment designed to lift materials from lower levels to higher elevations. It is ideally suited for vertically transporting solid block materials and small particle materials like limestone, coal, gypsum, clinker, dry clay, cement, coal powder, and more. Materials are fed into the hopper through a vibrating table and are then continuously lifted upward by the bucket elevator. The conveying speed can be adjusted to match the desired capacity, and the lifting height can be customized to meet specific requirements. At Sprint Drives, we offer two types of bucket elevators: the NE Series and the TGD Series, each distinguished by its unique traction method.
NE Series Bucket Elevators
Exceptional Lifting Capacity: Featuring a flow-through feeding type and strategic induction discharge type, the NE Series boasts an impressive lifting capacity range of 15-800 m³/h.
Efficient Power Consumption: The NE Series eliminates the back-and-dig phenomenon during material lifting, resulting in lower reactive power requirements.
Versatile Material Handling: Capable of handling powders, granules, lumps, and materials with temperatures up to 250°C, the NE Series offers a wide range of material compatibility.
Impressive Lifting Heights: With a low chain speed and stable operation, the NE Series utilizes a high-strength, wear-resistant plate chain to achieve lifting heights of up to 40 meters.
Long Service Life: The conveyor chain in the NE Series is designed to deliver a service life exceeding five years.
Proven Reliability: Advanced design principles ensure the machine's reliable operation, with a mean time between failures exceeding 30,000 hours.
TGD Series Bucket Elevators
Exceptional Lifting Heights: The TGD Series can reach impressive heights of up to 100 meters with a single machine.
High Capacity: Offering a maximum capacity of 950 m³/h, the TGD Series is designed for demanding applications.
Temperature Tolerance: The TGD Series can handle materials with temperatures up to 120°C.
Efficient Material Handling: The TGD Series features intensive bucket allocation, ensuring continuous material receipt and discharge.
Long Service Life: With proven reliability and a mean time between failures exceeding 60,000 hours, the TGD Series delivers exceptional durability.
Energy Efficiency: The TGD Series' lightweight design reduces energy consumption by over 30% compared to traditional chain elevators.
Low Maintenance Costs: The TGD Series' user-friendly operation, minimal wear parts, and reduced maintenance requirements result in significantly lower maintenance costs compared to conventional elevators.
Precision Engineering: The TGD Series is meticulously designed with high-strength structural components and a visually appealing aesthetic.
In addition to vertical conveying, we also offer horizontal and inclined conveying solutions. The following conveying equipment is utilized for transportation in these directions:
2. Belt Conveyor
Belt conveyors are categorized into belt conveyors and pipe belt conveyors based on their transportation methods and material characteristics.
Belt Conveyor
The DT II type fixed belt conveyor is customization to suit various terrains and working conditions, ensuring optimal performance in the conveying process. Multiple conveyors can be combined to create a comprehensive transportation system. This type of belt conveyor is ideal for transporting a wide range of bulk materials and finished goods with a loose density of 500-2500 kg/m³.
The belt conveyor typically operates in ambient temperatures ranging from -25°C to 40°C. For applications in special environments with specific requirements for heat resistance, cold resistance, waterproofing, corrosion resistance, flame retardant, or other factors, appropriate protective measures can be incorporated into the design.
Features:
Versatile Material Handling: Capable of transporting a wide range of materials.
High Capacity: Handles large volumes of materials efficiently.
Adaptable Conveying Lines: Configurable to suit various layouts and terrains.
Flexible Loading and Unloading: Facilitates efficient material transfer.
Durability and Reliability: Offers long service life and uninterrupted operation.
Enhanced Safety: Prioritizes safety with robust security features.
Cost-Effective Maintenance: Minimizes maintenance costs and downtime.
Tubular Belt Conveyor
The tubular belt conveyor is a specialized type of belt conveyor evolved from the grooved belt conveyor. It employs multiple rollers (typically six) to shape the conveyor belt into a tubular form, enabling the efficient transportation of various loose materials, including powders, granules, or blocks. The tubular belt conveyor is well-suited for conveying bulk materials with a density less than 2500 kg/m³. It operates effectively in ambient temperatures ranging from -25°C to 40°C and can meet specific requirements for heat resistance, cold resistance, waterproofing, corrosion resistance, explosion protection, flame retardant, and other factors.
Advantages
1.Sealed conveying of materials can reduce environmental pollution;
2.It can realize turning operation with small curvature radius;
3.The reciprocating operation of the belt can be used to realize two-way conveying;
4.If the tubular belt conveyor is selected, the trestle is not necessary, which saves the trestle cost;
5.Save space, save civil engineering and equipment investment, reduce the fault point and cost of equipment maintenance and operation.
3 Scraper Conveyor
TGSS series scraper conveyor is a conveying equipment that continuously transports bulk materials with the help of a moving scraper chain in a closed rectangular cross-section shell. It is mainly used to transport powdery, granular and small block materials. It is widely used in the horizontal transportation of materials and small particles in feed, chemical industry, grain depots, ports and terminals, grease and other industries.
Advantages:
Exceptional Durability: The high-strength chain, chain plate, and pin scraper fixed piece undergo specialized heat treatment, ensuring superior strength and wear resistance.
Quiet Operation and Extended Lifespan: The scraper is crafted from ultra-polymer wear-resistant material, effectively reducing noise and prolonging the equipment's service life.
Modular Design for Easy Maintenance: The detachable cover plate, side plates, and bottom plate facilitate inspection, maintenance, and replacement, streamlining the maintenance process.
Precision Adjustment: The transmission bracket is manufactured as a single unit and features dual fine-tuning screw holes for precise adjustments.
4. Air Cushion Conveyor
Air cushion belt conveyors are widely adopted in various industries, including metallurgy, electric power, coal, chemical, grain, light industry, ports and terminals, cement, and building materials, due to their lightweight structure, substantial conveying capacity, and minimal load on the silo roof.
Features:
Efficient and Reliable Operation: Delivers smooth, reliable performance, handles large volumes of materials, prevents material spillage, and maintains accurate feeding.
Energy Efficiency: Reduces running resistance, conveyor belt tension, and driving power consumption by approximately 10-20%.
Steep Inclination Capability: Handles steep inclines effectively.
Cost-Effective Solution: Offers a low initial investment and minimal maintenance costs.
Dust-Free Transportation: Ensures a clean and controlled environment through sealed transportation.
5. Fully Sealing Belt Conveyor
Fully sealing belt conveyors are ideal for silo projects with stringent environmental standards. They employ a patented single-roller structure to achieve complete sealing of the entire equipment. These conveyors find widespread applications in various industries, including metallurgy, mining, coal, ports, power stations, building materials, chemicals, light industry, machinery, petroleum, and more.
1.Full sealing structure, environment friendly
2.Special residual sweeping device to avoid tail residual
3.Innovated for belt-back, reduce friction and power consumption
4.Single roller structure, drive device is external, easy for maintenance
5.Equip safety operation device, such as：urgent stop, speed monitor, anti-blocking, off tracking etc.
6. Pneumatic Conveying System
The pneumatic conveying system is an environmentally friendly and efficient method for transporting pellets or powder materials using airflow as the conveying medium. It is primarily employed for medium and short-distance transportation of powder materials with a density not exceeding 2.0. The system typically consists of feeding equipment, conveying pipelines, material gas separation equipment, a gas source, and purification equipment. Pneumatic conveying devices are categorized into three types: Positive-pressure Dense-phase Pneumatic Conveying, Positive-pressure Dilute-phase Pneumatic Conveying, and Negative-pressure Suction Pneumatic Conveying.
Positive-Pressure Dense-Phase Pneumatic Conveying System
Efficient Long-Distance Transport: This system utilizes positive-pressure dense-phase pneumatic conveying technology, enabling transportation of materials over distances of 50-1000 meters, with lifting heights reaching up to 75 meters, and a maximum conveying capacity of 150 tons per hour.
Advantages of Dense-Phase Conveying:
High Mixing Ratio: Achieves a high mixing ratio of 30-60 kg (ash) per kg (gas), ensuring efficient material transfer.
Low Flow Rate: Operates at a low average flow rate of 8-12 m/s, minimizing wear on the system.
Extended Service Life: Thanks to the gentle material handling, the system boasts a remarkable service life of up to 20 years.
Long-Distance Capability: Effectively transports materials over extended distances.
High Capacity: Delivers high conveying capacity.
Compact Footprint: Requires minimal space due to efficient material handling.
Clean Operation: Maintains a clean and pollution-free environment.
Positive-Pressure Dilute-Phase Pneumatic Conveying System
High-Speed Short & Medium Distance Transport: This system utilizes positive pressure (pressure feeding type) with gas pressure lower than 1 kg/cm² to propel materials through the entire conveying line at high speeds.
Key Features:
Multi-Point Delivery: Capable of conveying materials from a single source to multiple destinations.
Large Capacity: Offers high conveying capacity.
Ideal for Short & Medium Distances: Well-suited for transporting materials over short or medium distances.
Material Compatibility: Suitable for a variety of materials like lime powder, fly ash, cement, alumina, ceramic powder, and rare earth materials.
Negative-Pressure Suction Pneumatic Conveying System
Centralized Multi-Point to Single-Point Transport: This system relies on a negative pressure airflow (lower than atmospheric pressure) to convey materials along a pipeline.
Benefits of Suction Conveying:
Centralized Transport: Efficiently gathers materials from multiple points to a single destination.
Wide Area Coverage: Can collect dispersed materials from various locations sequentially, even when multiple points are activated simultaneously.
Low-Level to High-Level Transport: Effectively transfers materials from low or deep positions to higher elevations.
Applications: Ideal for loading and unloading silo materials, as well as suction and transportation of bulk powders or granular materials in trucks or ships.
Open Feeding: Allows for open feeding points, minimizing dust generation.
Clean Material Handling: Prevents oil or water contamination from the fan, making it suitable for conveying food and other materials requiring clean transportation.
